The Suncombe Jacketed Mixing vessel 39173 is a 75 litre fully sanitary atmospheric tanks with a top entry solution mixer and a pressurised Oil or Hot Water Heating Jacket with the option of custom design and manufacture for your particular requirement.
Built from 316L stainless steel internally with 304/316 external fitments. Fully sanitary, the base internal finish is 180 grit, with higher finishes on demand including 0.4 μmRa surface finishes, 0.1 μmRa and electropolished finishes available.
2.2b Certificate of Conformity, construction drawings, maintenance procedures, datapack. Options for Materials of construction certificates (3.1b’s), Weld Procedures, Welder Approval Certificates, Isometric Weld Log Drawings, engraved welds. Full validation data Dossier.
Used in processing industries for sanitary processing and mixing. Typical uses include:
Mix Tanks, Batch Processors and Stirred Holding Tanks
Media Processors
Solution Preparation

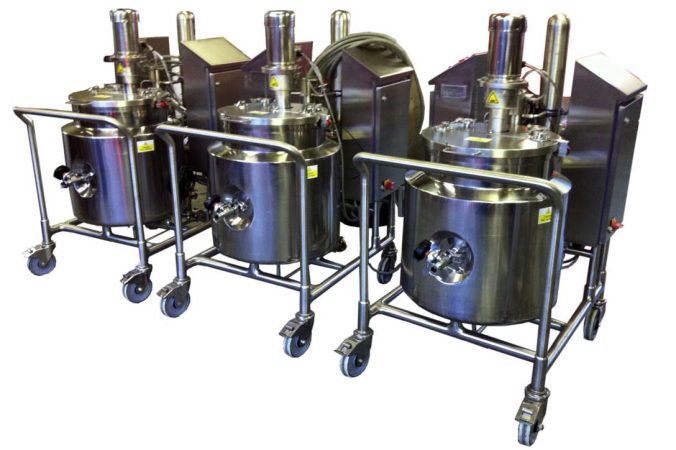

The standard tanks are available as static or mobile tanks with castors. Custom Vessels can be supplied with Equipment and Facilities as required.
75 litre vessel
Atmospheric inner and Pressure jacket design
316L Stainless Steel Construction
Internal Surface Finish
Stainless Steel polished Framework
Drainable, crevice free design
Triclamp connections and diaphragm valves

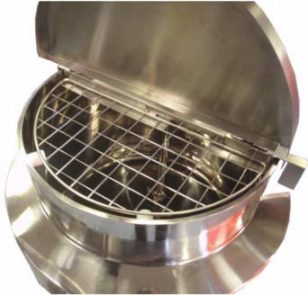

Safety grid over access cover, with safety switch
Oil/water electrical heater
Pressure Safety Equipment

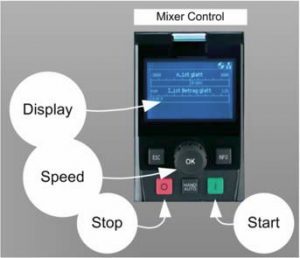

230 Vac/400 Vac 3 ph Control panel with level indicators, Heating Control with Setpoint and Variable speed drive for impellor mixer
