Mobile CIP

The Mobile CIP is a Total Loss cleaning in-place system supplied worldwide to BioPharma, healthcare, cosmetics, personal care, food, dairy, beverage and other processing industries. Designed and developed to be mobile to allow the entire system to be moved to its point of use. Manual or automatically operated, the WIP and CIP cleaning systems can be used for cleaning processing equipment including:

Tanks, Vessels, Vats, Fermenters, Mixers, Processors, Pipework, Valves, Isolators, Mills, Coaters, Filters, Pumps, Dryers and Fillers.

Built to hygienic and sanitary standards including ASME BPE, the MobileCIP™ incorporates a CIP buffer vessel for storing, batching and delivering CIP fluids, heating facilities, detergent dosing facilities, valving, pumps, instrumentation and an in-built control system.

Suncombe is among the leading global CIP system manufacturers in the UK catering to a diverse set of industries including pharmaceuticals, biopharmaceuticals, and biotechnology. Our state-of-the-art CIP system designs keep your equipment clean and hygienic, without the inconvenience of disassembly.

Leverage our advanced Mobile CIP systems and ensure excellent processing hygiene and sanitisation each time. Email [email protected] with your CIP requirements.

THE Mobile CLEAN-in-place system process

A Brief Overview of Our Mobile CIP Machine Process

The CIP cleaning system is an indispensable solution for biowaste, pharma, and biopharma producers, where hygiene and cleanliness can’t be compromised. Built as a total-loss CIP clean-in-place system, Suncombe’s Mobile CIP system effectively cleans and repeats the action as long as desired in an automated or manual fashion. Our mobile clean-in-place equipment can be conveniently moved to multiple points of use in a facility. This ease of operation and movement facilitates efficient and thorough sanitation of piping systems and production equipment. Suncombe’s Mobile CIP system covers multiple operations to ensure complete cleansing of production equipment. Depending on the level and extent of contamination, the cleaning stages include pre-rinsing, detergent cleaning, rinsing, acid cleaning, rinsing, disinfection, and final rinse. We tailor the cleaning process according to your requirements, including the type of equipment material and the GMP and regulations to be followed.

CIP QUESTIONNAIRE CIP SELECTION GUIDE
SPEAK TO A MOBILE Cleaning in Place (CIP) SPECIALIST

SPEAK TO A MOBILE Cleaning in Place (CIP) SPECIALIST

CONTACT US

How Mobile CIP’s Offer Flexible Cleaning in Place Solutions for Enhanced Portability and Efficiency

In industries where flexibility and portability are essential, such as the food and beverage, dairy, and brewing industries, mobile CIP (Clean-In-Place) systems have emerged as valuable assets. CIP (Clean-In-Place) systems are versatile cleaning solutions that offer the convenience of on-the-go cleaning, allowing for efficient and thorough sanitation of equipment and piping systems in various locations.

Mobile CIP equipment is designed to be compact, portable, and easy to manoeuvre. They are equipped with wheels or casters, enabling operators to move the system to different areas of the facility as needed. This flexibility eliminates the need for dedicated fixed cleaning stations, saving space and accommodating diverse cleaning requirements across the production facility.

Key Advantages of Suncombe’s Mobile CIP Cleaning Systems

One of the primary advantages of Suncombe’s mobile CIP systems is their ability to deliver efficient and reliable cleaning performance in different settings. Whether it’s cleaning tanks, pipes, valves, or other equipment, these systems provide a comprehensive solution to remove residues, contaminants, and biofilms from surfaces. By utilising a combination of cleaning agents, temperature, and flow rate, our mobile CIP Cleaning systems in the UK, US and across the globe ensure thorough and consistent cleaning, minimising the risk of contamination and product defects.

Suncombe’s Mobile CIP systems offer ease of use and convenience for operators. They are designed with user-friendly interfaces and intuitive controls, simplifying the setup, operation, and monitoring of cleaning cycles. Operators can easily adjust cleaning parameters, such as temperature and cleaning agent concentration, to meet the specific requirements of different equipment and products. This adaptability enhances the efficiency of cleaning processes and allows for customization based on varying cleaning needs.

Furthermore, our mobile CIP systems are equipped with efficient resource management features. They optimise the use of water, cleaning agents, and energy, minimising waste and reducing operating costs. These systems may include recirculation systems, variable speed pumps, and sensors to ensure precise control over resource usage. By promoting sustainable practices and resource efficiency, Suncombe’s mobile CIP equipment aligns with environmental stewardship goals and supports responsible manufacturing.

Mobile CIP machines in the US, UK and worldwide also incorporate safety features to protect operators and maintain a secure working environment. They may include safety interlocks, emergency stop buttons, and integrated safety protocols to prevent accidents or mishaps during cleaning operations. Additionally, these systems are designed to meet relevant regulatory guidelines and quality standards, ensuring compliance with industry requirements.

In conclusion, our mobile CIP systems offer flexible and efficient cleaning solutions for industries that require portable sanitation capabilities. With their compact design, ease of use, and resource optimization features, these systems enhance operational efficiency, reduce downtime, and ensure product quality and safety.

Implementing mobile CIP systems enables manufacturers to maintain cleanliness and hygiene standards across various locations, enhancing overall productivity and customer satisfaction. Invest in Suncombe’s mobile CIP systems today to unlock the benefits of flexibility and efficiency in your cleaning processes. We can provide you with a CIP (Clean-In-Place) system that is customised and fits your specific needs!

Call us or email [email protected] for more information.

STANDARDISED MODELS

We can offer a range of standardised cleaning in place systems built to a specification to suit your needs. Each of the below CIP & WIP Systems can be specified to one of our variants

Part #

Tank Volume Litres

Flowrate Litres per minutes

Head Pressure barg

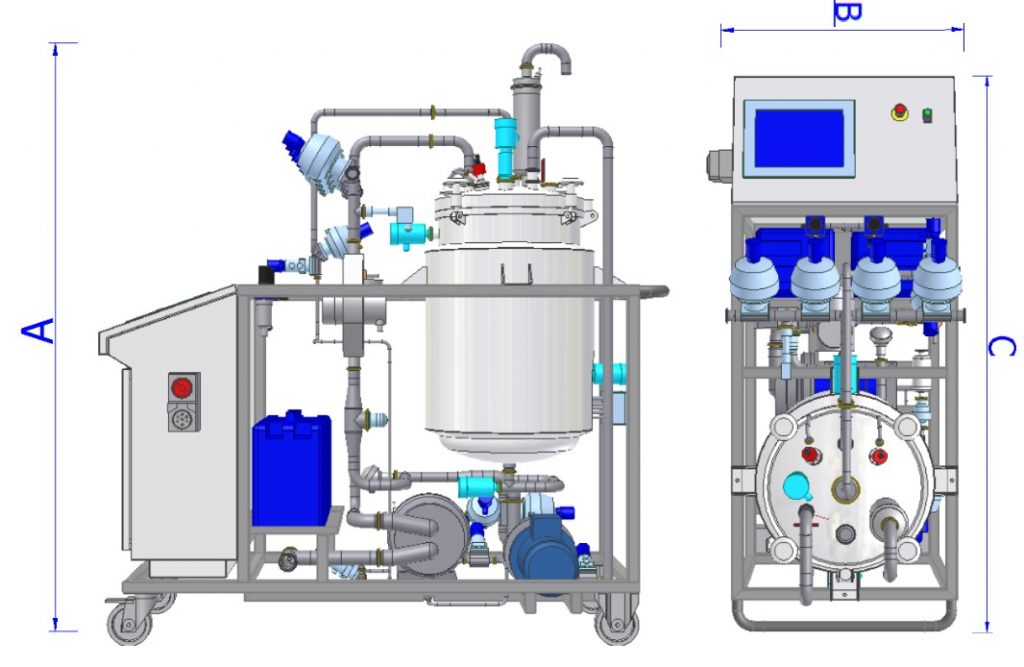

Dimensions A (mm)

Dimensions B (mm)

Dimensions C (mm)

MobileCIP™60 – 1 Tank

150

60

4.5

1,750

850

1,900

MobileCIP™60 – 2 Tank

2 x 150

60

4.5

1,750

850

2,350

MobileCIP™60 – 2 Tank – Square

2 x 150

60

4.5

1,750

1,400

1,400

MobileCIP™100 – 1 Tank

250

100

4.5

1,950

1,050

2,050

MobileCIP™100 – 2 Tank

2 x 250

100

4.5

1,950

1,050

2,550

MobileCIP™150 – 1 Tank

350

150

4.5

1,950

1,050

2,250

MobileCIP™150 – 2 Tank

2 x 350

150

4.5

1,950

1,050

2,850

Key Features

SIP

SIP capabilities available in all of our Mobile CIPs. The sterilisation of production equipment carried out by the means of superheated steam.


ATEX

ATEX versions are available for solvent use and/or aqueous use in zoned areas

HYGIENIC COVERS

Optional stainless steel covers can be fitted

CIP BUFFER VESSEL

Buffer vessel for solution mixing

CHEMICAL DOSING SYSTEMS

Includes dosing confirmation which can be incorporated within any recipe step at any concentration

INLET WATER SUPPLIES

Different purities of water from WFI (water from injection to towns water)

HYGIENIC PNEUMATICALLY OPERATED VALVES

Sanitary and sterile processing routing and Biopharma diaphragm valves

ANALYTICAL INSTRUMENTATION

High quality analytical and process instrumentation


WATER AND CHEMCIAL RINSES

Available with conductivity controllers for detergent concentration and pure water.

INTEGRATED ELECTRICAL HEATING

High power electrical liquid heating for fast heat up times

UTILITY ADAPTABLE

Build your own operational method/process

CIP SUCTION TO EMPTY CAPABILITIES

Fully self-draining including pump housing

TOUCHSCREEN HMI

Operator Friendly and intuitive system

Manufacturing Standards

Business Practices

Welding Standards

  • BS EN 10204 – 3.1

  • BS EN ISO 9606-1:2013

  • BS EN ISO 15614-1:2004+A2:2012
